N3H-5KW 8KW 10KW 12KW 16KW Solar Power PV Spart Phase 110V 120V Mahybrid Inverter
120 / 240V inopenuka phatu hybrid inverter

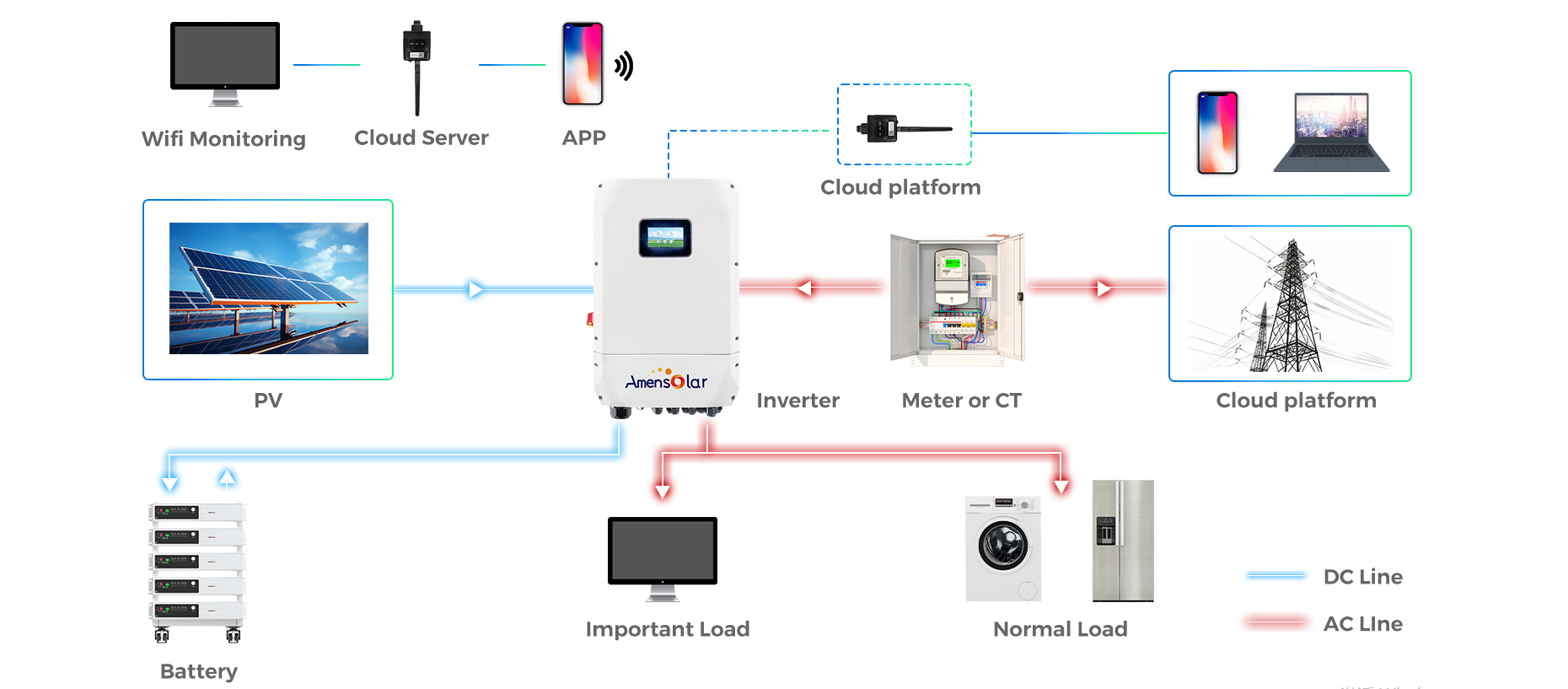

Iyo Inverter inoshandura PhotoVoltaic DC Simba muAC PoWerto Suppto Simba kune dzakasiyana siyana kutakura magetsi;
Kana rutsigiro kutengesa kune grid;
Kana kuchengeta iyo dc simba mubhatiri uye kuiisa kune mitengo yemagetsi yakakwira kana pasina simba rine grid.
Vasingawanikani uye mabhatiri anoshandiswa mudzimba uye akasiyana marapuro ekutengesa,
Kana iwe uchida kuti vabati vevakwanise uye mabhatiri,
Kana kuisa mumusika wako wemuno,
Ndapota taura nesu ikozvino!
| Technical data | N3H-X10-US |
| PV yekuisa data | |
| Max.dc yekuisa simba | 15KW |
| No.mppt tracker | 4 |
| MPPT Range | 120 - 500V |
| Max.dc Input Voltage | 500V |
| Max.inkut there | 14Ana4 |
| Battery Input data | |
| Nominal voltage (vdc) | 48V |
| Max.charging / kurasa zvazvino | 190A / 210a |
| Battery voltage range | 40-60V |
| Mhando bhatiri | Lithium uye tungamira acid bhatiri |
| Kuchaja zano kune li-ion bhatiri | Kuzvishingisa kune bMs |
| AC Output data (pa-grid) | |
| Nominal inoburitsa simba rinobuda kuGrid | 10kva |
| Max. One one Simba Rinobuda kuGrid | 11Kva |
| Output voltage range | 110- 120 / 220-240V akapatsanuka, 208V (2/3 chikamu), 230v (1 chikamu) |
| Kubuda frequency | 50 / 60HZ (45 kusvika ku58.9Hz / 55 kusvika 65Hz) |
| Nominal AC ikozvino kubuda kweGrid | 41.7a |
| Max.ac zvazvino kuburitsa grid | 45.8a |
| Chekunze Simba Factor | 0.8Leading ... 0.8lagging |
| Kubuda kweThi | <2% |
| AC yekubuda data (kumashure-kumusoro) | |
| Nominal. RINOGONESESA RUDZIDZO | 10kva |
| Max. RINOGONESESA RUDZIDZO | 11Kva |
| Nominal Output Voltage Ln / L1-L2 | 120 / 240V |
| Nminal Output Frequency | 60HZ |
| Kubuda thdu | <2% |
| Kushanda zvakanaka | |
| Europe kushanda | > = 97.8% |
| Max. Bhatiri Kuti Utore Kubudirira | > = 97.2% |
| Chinhu | Tsanangudzo |
| 01 | Bat Inpu / Bat Kubuda |
| 02 | Wifi |
| 03 | Poto yekutaurirana |
| 04 | CTL 2 |
| 05 | CTL 1 |
| 06 | Mutoro 1 |
| 07 | Pasi |
| 08 | PV yekuisa |
| 09 | PV inobuda |
| 10 | Jenareta |
| 11 | Grid |
| 12 | Mutoro 2 |
