AML12-150 12.8VL Series LifePo4 Battery
MODEL:

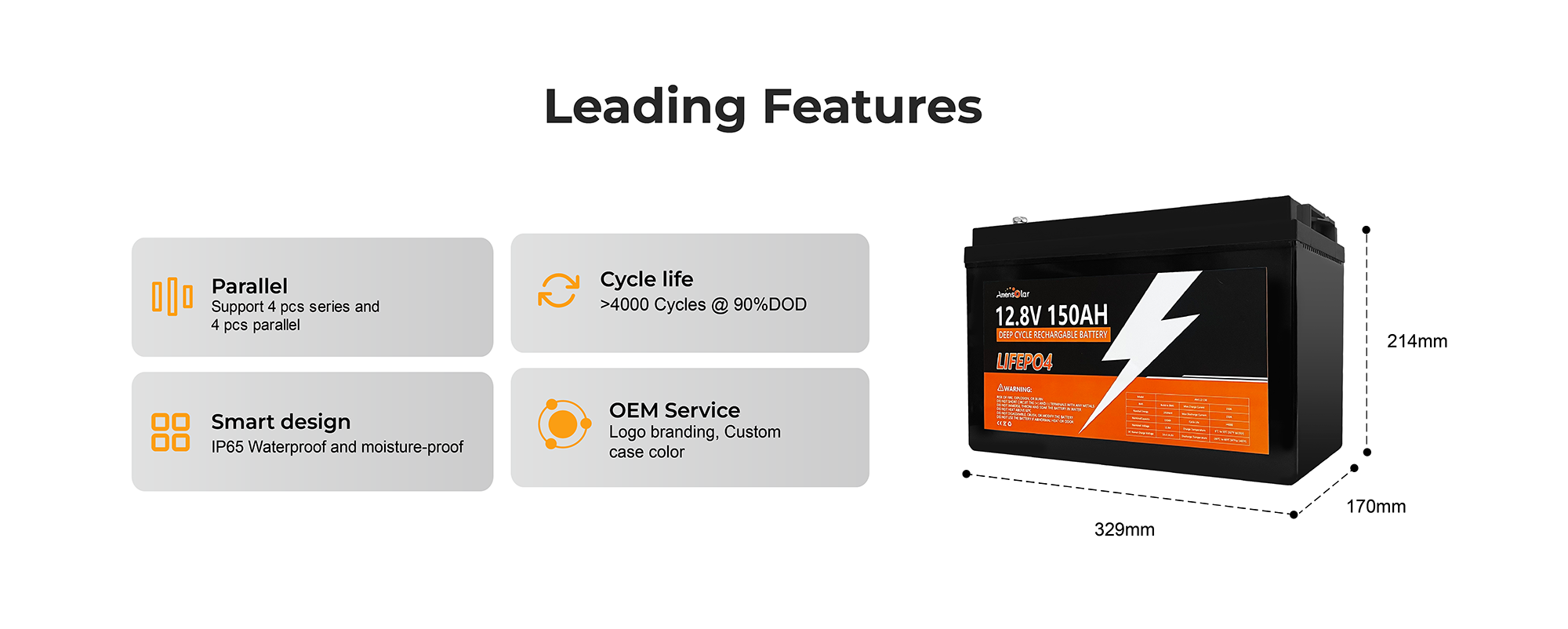

Rack-Yakaiswa Ultra-Thin Lithium Battery 2U Dhizaini

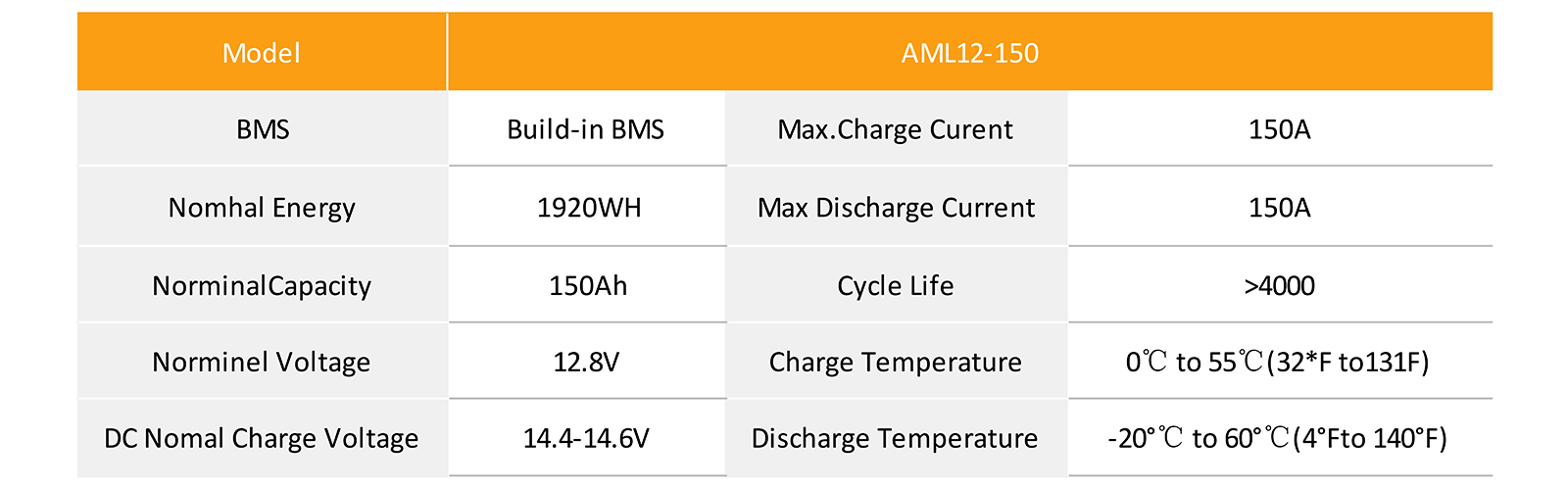

| Model | AML12-150 | |||
| Zvemagetsi Parameter | ||||
| Bhatiri Type | LiFePO4 (LITHIUM IRON PHOSPHATE) | |||
| BMS | Yakavakwa-mukati BMS | |||
| Norminal Energy | 1920WH | |||
| Norminal Capacity | 150Ah | |||
| Norminal Voltage | 12.8V | |||
| Cycle Life | >4000 | |||
| Charge Parameter | ||||
| DC Normal Charge Voltage | 14.4-14.6V | |||
| Recommended Charge Current | <0.2C | |||
| Inobvumirwa Max.Charge Current | 150A | |||
| Charge Cheka-Kubvisa Voltage | 14.6±1Vdc | |||
| Charge Mode | 0.2C kusvika 14.6V, ipapo 14.6V, kuchaja ikozvino kusvika 0.02C(CC/CV) | |||
| Discharge Parameter | ||||
| Continuous Discharge Current | 0.5C | |||
| Kubvumirwa Max. DischargeCurrent | 150A | |||
| Discharge Cut-off Voltage | 10V | |||
| Max. Pulse Current Discharge | 300A10S | |||
| Environmental & Mechanical Parameter | ||||
| Charge Temperature | 0°C kusvika 55°C(32°F kusvika131°F) | |||
| Discharge Temperature | -20°C kusvika 60°C(4°F kusvika 140°F) | |||
| Enclosure Dziviriro Level | IP65 | |||
| Nyaya Yenyaya | ABS | |||
| Zviyero (mm) | 329*170*214 | |||
| Huremu (kg) | 15kg | |||
| Parallel & Series | Tsigira 4 pcs akatevedzana uye 4 pcs parallel | |||
