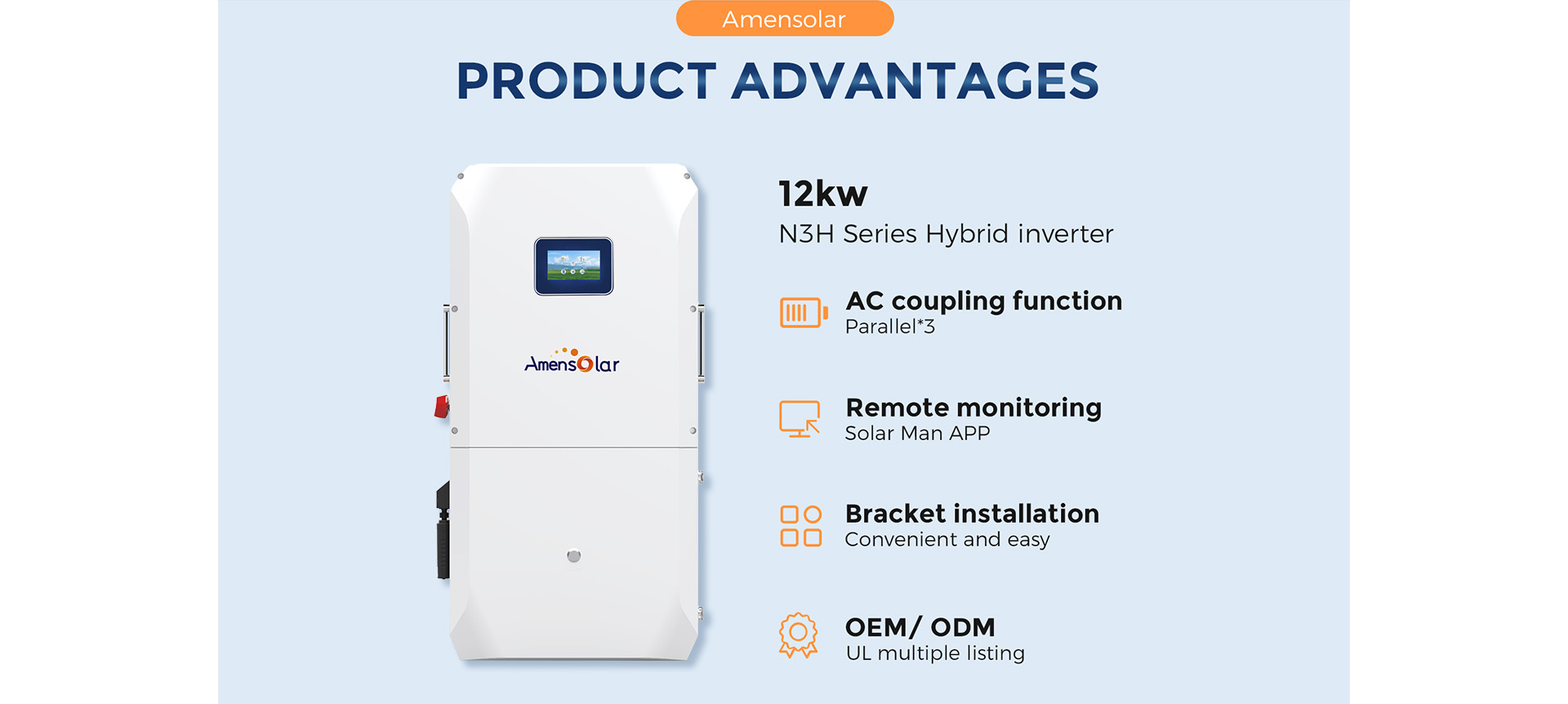

N3H-X12US 12KW Split Phase Hybrid Solar Inverter
120/240V Split Phase Hybrid Inverter
Product Description
Leading Features
-
01
Easy Installation
Flexible configuration, plug and play set-up built-in fuse protection.
-
02
48V
Includes low-voltage batteries.
-
03
IP65 Rated
Engineered to last with maximum flexibility Suitable for outdoor installation.
-
04
SOLARMAN Remote Monitoring
Monitor your system remotely via smartphone app or web portal.
Certificates
Our Advantages
- Free energy is accessible during nighttime.
- Cut down electricity expenses by 50% annually.
- Engage in peak load shifting to acquire extra economic advantages.
- Ensure uninterrupted operation of critical loads during power outages.
Case Presentation
Package
Careful packaging:
We focus on packaging quality, using tough cartons and foam to protect products in transit, with clear usage instructions.
Secure shipping:
We partner with trusted logistics providers, ensuring products are well-protected.
|
Model |
N3H-X12US |
| PV input | |
| Max.DC input power (kW) | 18 |
| No. of MPPT trackers | 4 |
| MPPT voltage range (V) | 120~430 |
| MAX. DC input voltage (V) | 500 |
| MAX. input current per MPPT (A) | 16/16/16/16 |
| MAX. short current per MPPT (A) | 22 |
|
Battery input |
|
| Nominal voltage (V) | 48 |
| MAX.charging/discharging current (A) | 250/260 |
| Battery voltage range (V) | 40-58 |
| Battery type | Lithium /Lead-acid |
| Charging controller | 3-Stage with equalization |
|
AC output(on-grid) |
|
| Nominal output power output to grid (kVA) | 12 |
| MAX. apparent power output to grid (kVA) | 13.2 |
| Nominal AC voltage(L-N/L1-L2) (V) | 110 -120V/220-240V split phase, 208V(2/3 phase), 230V(1phase) |
| Nominal AC frequency(Hz) | 50/60 |
| Nominal AC current (A) | 50 |
| Max. AC current (A) | 55 |
| Max. grid passthrough current (A) | 200 |
| Output THDi | <3% |
|
AC output(back-up) |
|
| Nominal. apparent power (kVA) | 12 |
| Max. apparent power（no PV) (kVA) | 12 |
| Max. apparent power（wtih PV) (kVA) | 13.2 |
| Nominal output voltage(V) | 120/240 |
| Nominal output frequency (Hz) | 60 |
| Output power factor | 0.8leading~0.8lagging |
| Output THDu | <2% |
| Protection | |
| Ground detection | Yes |
| Arc fault protection | Yes |
| Island protection | Yes |
| Insulation resistor detection | Yes |
| Residual current monitoring unit | Yes |
| Output over current protection | Yes |
| Back-up output short protection | Yes |
| Output over voltage protection | Yes |
| Output under voltage protection | Yes |
|
General data |
|
| Mppt efficency | 99.9% |
| Europe efficiency(PV) | 96.2% |
| Max. PV to grid efficiency(PV) | 96.5% |
| Max. battery to load efficiency | 94.6% |
| Max. PV to battery charing efficiency | 95.8% |
| Max. grid to battery charing efficiency | 94.5% |
| Operating temperature range (℃) | -25~+60 |
| Relative humidity | 0-95% |
| Operating altitude | 0~4,000m(Derating above 2,000m altitude) |
| Ingress protection | IP65/NEMA 3R |
| Weight (kg) | 53 |
| Weight (with breaker) (kg) | 56 |
| Dimensions W*H*D (mm) | 495 x 900 x 260 |
| Cooling | Air Cooling |
| Noise emission (dB) | 38 |
| Display | LCD |
| Communication with BMS/Meter/EMS | RS485, CAN |
| Supported communication interface | RS485, 4G (optional), Wi-Fi |
| Self-consumption | <25W |
| Safety | UL1741, UL1741SA&SB all options, UL1699B, CSA -C22.2 NO.107.1-01,RSD(NEC690.5,11,12), |
| EMC | FCC part 15 classB |
| Grid connection standards | IEEE 1547, IEEE 2030.5, HECO Rule 14H, CA Rule 21 Phase I,II,III,CEC,CSIP,SRD2.0,SGIP,OGPe,NOM,California Prob65 |
|
Other data |
|
| Backup conduit | 2″ |
| Grid conduit | 2″ |
| AC solar conduit | 2″ |
| PV input conduit | 2″ |
| Bat input conduit | 2″ |
| PV switch | Integrated |
| Object | Description |
| 01 | BAT inpu/BAT output |
| 02 | WIFI |
| 03 | Communication Pot |
| 04 | CTL 2 |
| 05 | CTL 1 |
| 06 | Load 1 |
| 07 | Ground |
| 08 | PV input |
| 09 | PV output |
| 10 | Generator |
| 11 | Grid |
| 12 | Load 2 |
