Wall-Mounted 200ah Large-Capacity Lithium Battery
Product Description
s52300 is a top-notch solar battery designed for versatility and convenience. With its stack-mountable feature and impressive auto DIP addressing function, it’s the perfect solution for diverse energy storage needs. ensuring your customers’ satisfaction and boosting your business growth.
Leading Features
-
01
Easy to be installed
Easy maintenance, flexibility and versatility.
-
02
LFP Prismatic Cell
Current interrupt Device (CID) helps pressure relief and ensures safe and detect controllable LifePo4 Battery.
-
03
51.2V low-voltage

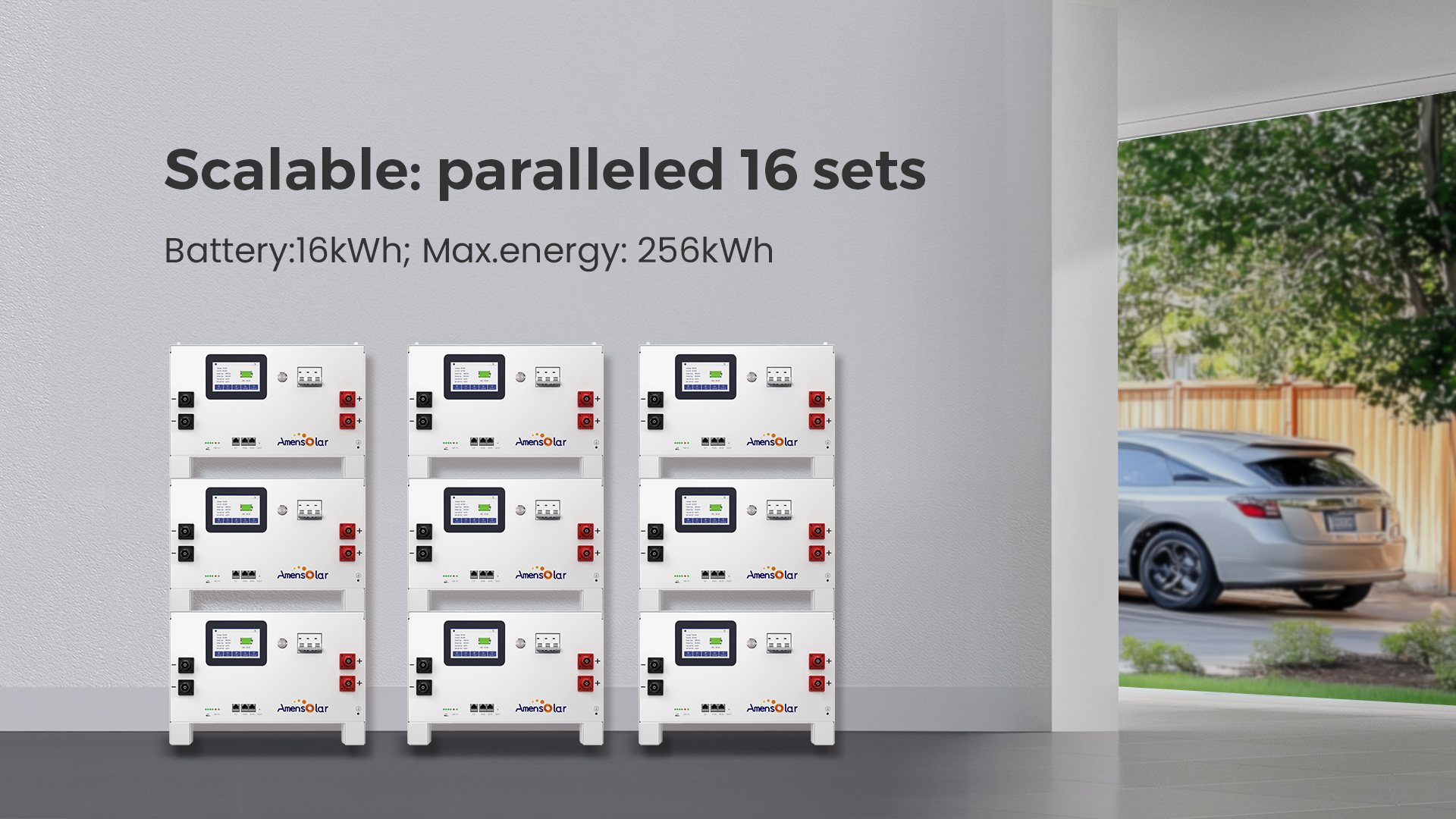

Support 16 sets parallel connection.
-
04
BMS
Real-time control and accurate monitor in single cell voltag, current and temperature, ensure battery safety.
Certificates
Case Presentation

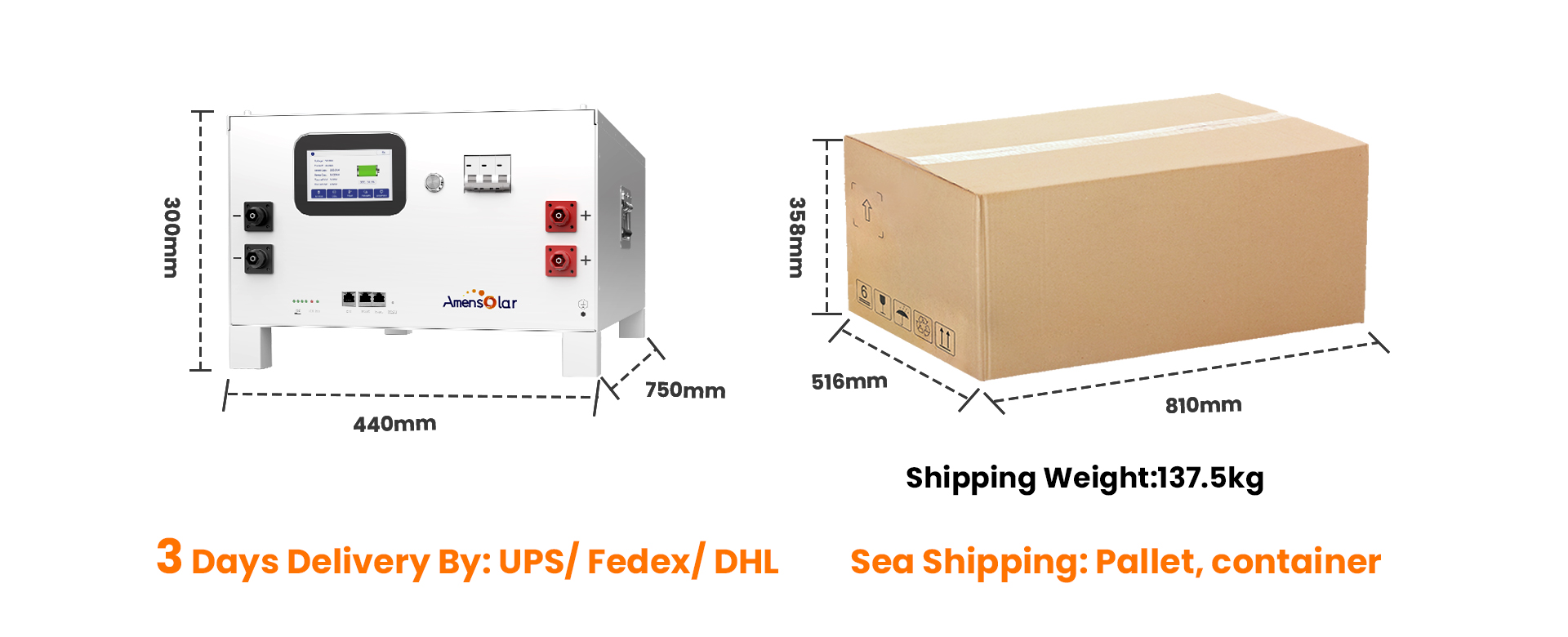

Package
Careful packaging:
We focus on packaging quality, using tough cartons and foam to protect products in transit, with clear usage instructions.
Secure shipping:
We partner with trusted logistics providers, ensuring products are well-protected.
|
Model |
S52300 |
| Module Type | LFP 16kWh / LV |
|
Nominal Voltage
|
51.2V |
|
Operating Voltage Range
|
44.8~58.4V
|
|
Nominal Capacity
|
300Ah |
|
Nominal Energy (at25°C)
|
16kWh |
|
DOD
|
90%
|
|
Charge/Discharge Current
|
100A
|
|
Max Charge/Discharge Current
|
200A
|
|
Charge Temperature
|
200A |
| Charge Temperature | 0~55℃ |
|
Discharge Temperature
|
-10~50℃
|
|
Relative Humidity
|
5% – 95%
|
| Communication Interface |
CAN / RS485
|
|
Enclosure Protection Rating
|
IP 52
|
|
Cooling Type
|
Natural cooling
|
|
Cycle Life
|
≥8000
|
|
Warranty
|
10 years
|
|
Life Span
|
20+ Years (25°C)
|
|
Max. Pieces of Parallel
|
16
|
|
Dimension (L*W*H)
|
750*440*300mm
|
|
Weight
|
125±1kg
|
|
Certificates
|
IEC61000/CE/UN38.3/MSDS
|
