| Model |
N1F-A12US |
| Mains mode |
| Nominal input voltage |
120(L1/N,L2/N)/240Vac(L1/L2) |
| Parallel Capability |
YES,6 Units |
| Input phase voltage range |
(85Vac~140Vac)±2% |
| Frequency |
50Hz/60Hz(Auto detection) |
| Frequency range |
47±0.3Hz~55±0.3Hz(50Hz);57±0.3Hz~65±0.3Hz(60Hz); |
| Max.efficiency |
>95% |
| Conversion Time(bypass and inverter) |
10ms(typical) |
| Max.bypass phase overload current |
2P,63A/63A(L1/L2) |
| Inverter mode |
| Output voltage waveform |
Pure sine wave |
| Nominal output power(VA)/(W) |
Split phase:12000VA/12000WSingle phase:7200VA/7200W(limited by the wiring terminals) |
| Power factor |
1 |
| Nominal output voltage(Vac) |
120Vac(L1/N,L2/N)/240Vac(L1/L2) |
| Output frequency range(Hz) |
50Hz±0.3Hz/60Hz±0.3Hz |
| Max.efficiency |
>91% |
| Overload protection |
(102%<load <110%)±5%:report error and turn off the output after 5 minutes;(110%<load<125%)±5%:report error and turn off the output after 10 seconds;Load>125%±5%:report error and turn off the output after 5 seconds; |
| Peak power |
Split phase:18000VA Single phase:18000VA |
| Loaded motor capability |
6HP |
| Nominal battery input voltage |
48V(Minimum starting voltage 44V) |
| Battery voltage range |
40.0Vdc~58.6Vdc±0.6Vdc(Undervoltage alarm/shutdown voltage/overvoltage alarm/overvoltage recovery.settable on LCD screen) |
| Save power mode |
Load≤25W enter power-saving mode |
| Mains charge |
| Battery type |
Lead acid or lithium battery |
| Max.charge current(configurable) |
160A |
| Charge voltage range |
40-60Vdc |
| Solar charge |
| Max.PV open circuit voltage |
500Vdc |
| PV operate voltage range |
90Vdc~500Vdc |
| MPPT voltage range |
90Vdc~450Vdc |
| Battery voltage range |
40-60Vdc |
| Max.PV input power/current |
6000W×2/22A×2 |
| Charge current range(configurable) |
220A |
| Max.hybrid charge current(PV+AC) |
| Max.hybrid charge current(configurable) |
0-220A |
| Certification |
| Safety cetification |
UL STD.1741 |
| EMC cetification level |
FCC part15,CLASSB |
| Operate temperature range |
-10℃ to 55℃(>45℃ derating) |
| Storage temperature range |
-25℃~60℃ |
| Humidity range |
5% to 95%(Conformal coating protection) |
| Noise |
≤60dB |
| Cooling |
Forced air cooling,variable speed of fan |
| Communicate |
USB/RS485(/WiFi/GPRS)/Dry node control |

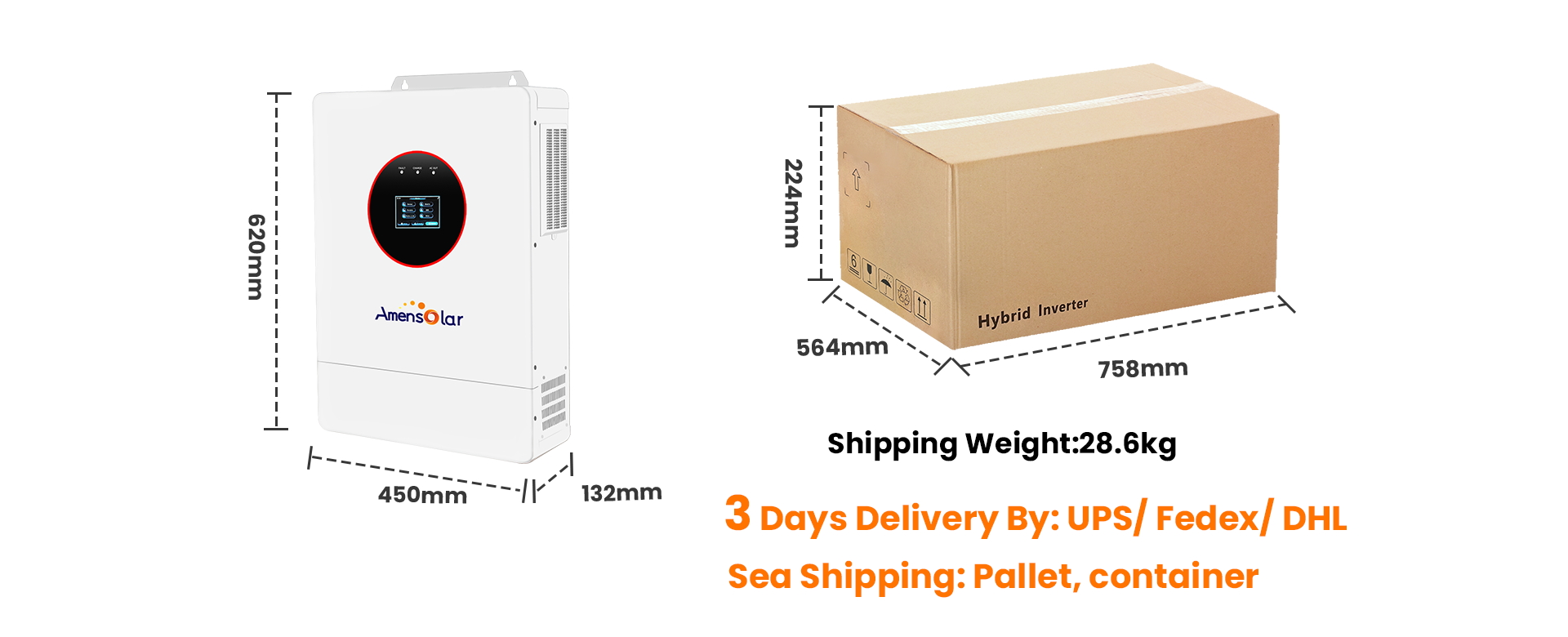

| Dimensions(L*W*D) |
620*450*132 |
| Weight(kg) |
23.8 |
