Phab ntsa-mounted 200ah Loj-muaj peev xwm Lithium roj teeb
Product Description
AW10240 yog lub hnub ci roj teeb saum toj kawg nkaus tsim los rau ntau yam thiab yooj yim. Nrog nws cov phab ntsa-mountable feature thiab impressive nws pib DIP chaw nyob muaj nuj nqi, nws yog lub zoo meej tov rau ntau yam zog cia xav tau kev pab. ua kom koj cov neeg siv khoom txaus siab thiab txhawb koj txoj kev lag luam loj hlob.
Cov yam ntxwv ua
-
01
Yooj yim rau nruab
Ib qho yooj yim txij nkawm, yooj thiab versatility.
-
02
LFP Prismatic Cell
Cov cuab yeej cuam tshuam tam sim no (CID) pab kom muaj kev ntxhov siab thiab ua kom muaj kev nyab xeeb thiab kuaj xyuas lub roj teeb LifePo4.
-
03
51.2V qis-voltage
Txhawb 8 teeb tsa kev sib txuas.
-
04
BMS
Kev tswj lub sijhawm tiag tiag thiab saib xyuas kom raug hauv ib lub xov tooj ntawm tes voltag, tam sim no thiab kub, ua kom muaj kev nyab xeeb ntawm roj teeb.
Hnub Ci Hybrid Inverter Daim Ntawv Thov

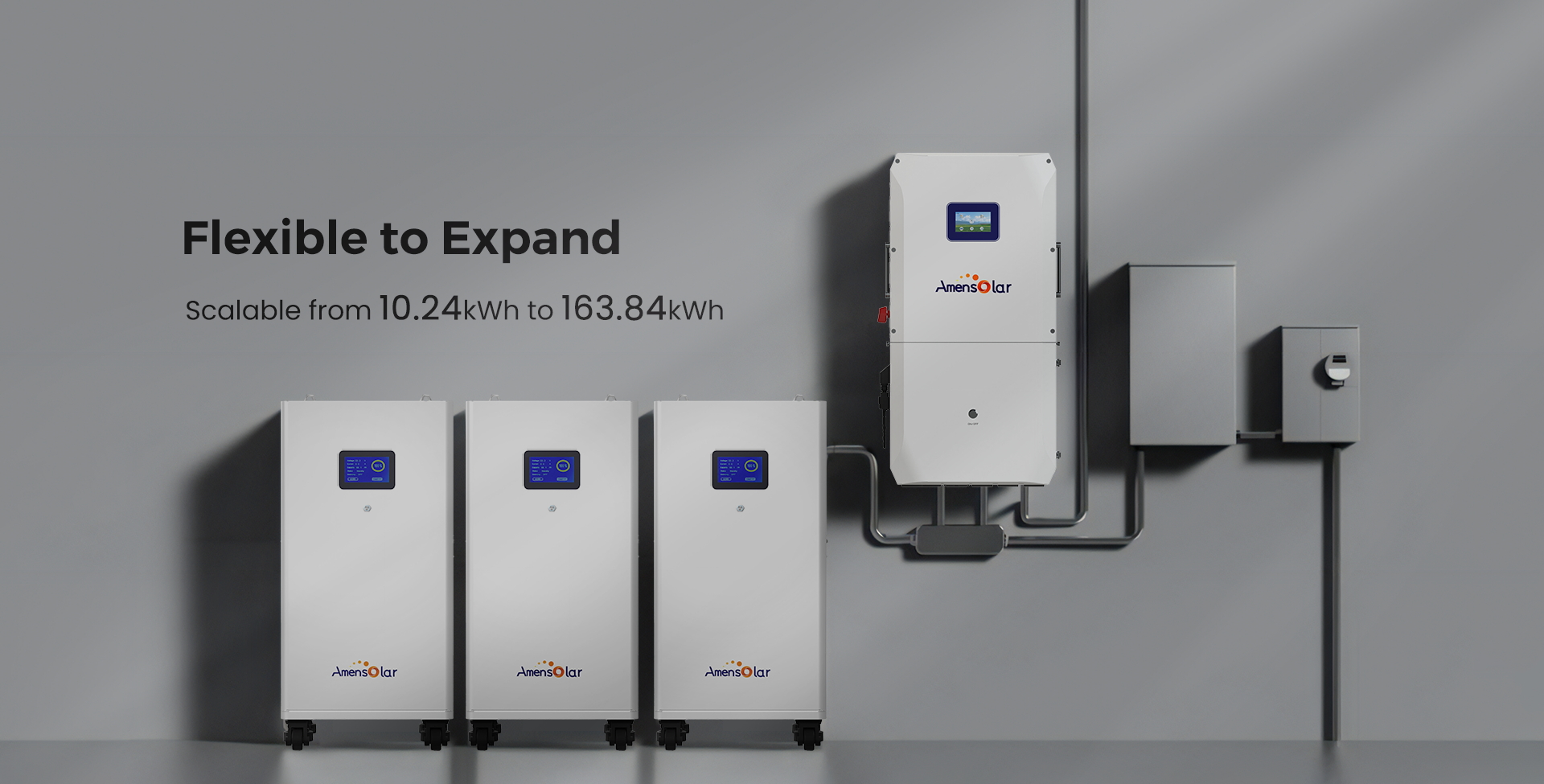

Kev sib txuas ntawm qhov system
Amensolar lub roj teeb uas tsis muaj hluav taws xob, nruab nrog lithium hlau phosphate raws li cov khoom siv hluav taws xob zoo, yog crafted nrog square aluminium plhaub cell tsim rau superior durability thiab stability. Thaum siv sib npaug nrog lub hnub ci inverter, nws hloov pauv lub hnub ci zog, lav lub zog zoo ib yam rau hluav taws xob thiab kev thauj khoom.
Daim ntawv pov thawj
Peb Qhov Zoo
Txuag Qhov Chaw Nruab Nrab: POWER BOX phab ntsa-mounted lithium roj teeb tuaj yeem nruab lub roj teeb ntawm phab ntsa kom siv tag nrho ntawm qhov chaw ntsug. Qhov no muaj txiaj ntsig zoo rau ib puag ncig uas muaj qhov chaw tsawg. Kev Kho Kom Yooj Yim: POWER BOX phab ntsa-mounted lithium roj teeb tau teeb tsa siab dua hauv av, ua kom yooj yim rau kev tswj thiab ntxuav. Cov neeg siv tuaj yeem tshawb xyuas cov xwm txheej ntawm lub roj teeb tau yooj yim dua, hloov lub roj teeb, lossis ua lwm yam kev saib xyuas yam tsis tas yuav khoov lossis squat.
Case Presentation

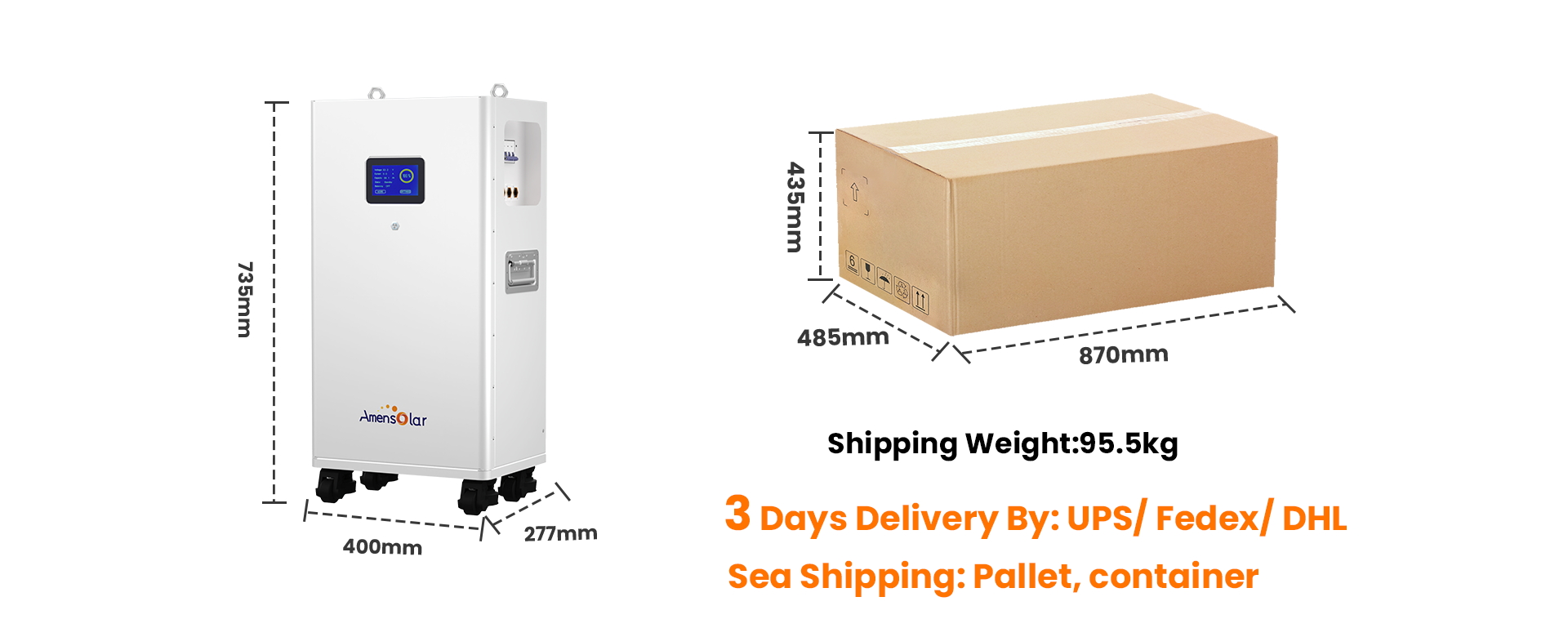

Pob
Ua tib zoo ntim:
Peb tsom mus rau kev ntim khoom zoo, siv cov thawv tawv tawv thiab ua npuas ncauj los tiv thaiv cov khoom hauv kev thauj mus los, nrog cov lus qhia meej txog kev siv.
Kev ruaj ntseg shipping:
Peb koom tes nrog cov neeg muab kev pabcuam logistics ntseeg siab, ua kom cov khoom muaj kev tiv thaiv zoo.
| Yam khoom | TIAB SA 10240 |
| Daim ntawv pov thawj Model | YNJB16S100KX-L-2PD |
| Hom roj teeb | LiFePO4 |
| Mount Hom | Phab ntsa Mounted |
| Nominal voltage (V) | 51.2 ib |
| Peev xwm (Ah) | 200 |
| Nominal zog (KWh) | 10.24 Nws |
| Kev khiav hauj lwm voltage (V) | 44.8–57.6 |
| Max Charge tam sim no (A) | 200 |
| Kev them nyiaj tam sim no (A) | 100 |
| Max tawm tam sim no (A) | 200 |
| Tshem tawm tam sim no (A) | 100 |
| Kev kub ceev | 0 ℃ ~ + 55 ℃ |
| Tshem Tawm Kub | -20 ℃ ~ + 55 ℃ |
| txheeb ze humidity | 5% -95% |
| Dimension (L * W * Hmm) | 530 * 760 * 210 hli |
| Qhov hnyav (KG) | 97 ± 0.5 hli |
| Kev sib txuas lus | TSI, RS485 |
| Enclosure Protection Rating | IP21 |
| Hom cua txias | Ntuj Txias |
| Lub neej voj voog | ≥6000 |
| Pom zoo DOD | 90% |
| Tsim Lub Neej | 20+ Xyoo (25 ℃ @ 77 ℉) |
| Kev Nyab Xeeb Txuj | CE / UN38.3 |
| Max. Pieces ntawm Parallel | 16 |
Compatible List of Inverter Hom
| Qauv | AW 10240 | |||
| Nominal voltage | 5 1,2v | |||
| Voltage Ntau | 44.8V ~ 58.4V | |||
| Nominal Peev Xwm | 200 Aw | |||
| Nominal Zog | 10.24 kWh | |||
| Charge tam sim no | 100 A | |||
| Max Charge Tam sim no | 200 A | |||
| Tshem tawm tam sim no | 100 A | |||
| Max tawm tam sim no | 200 A | |||

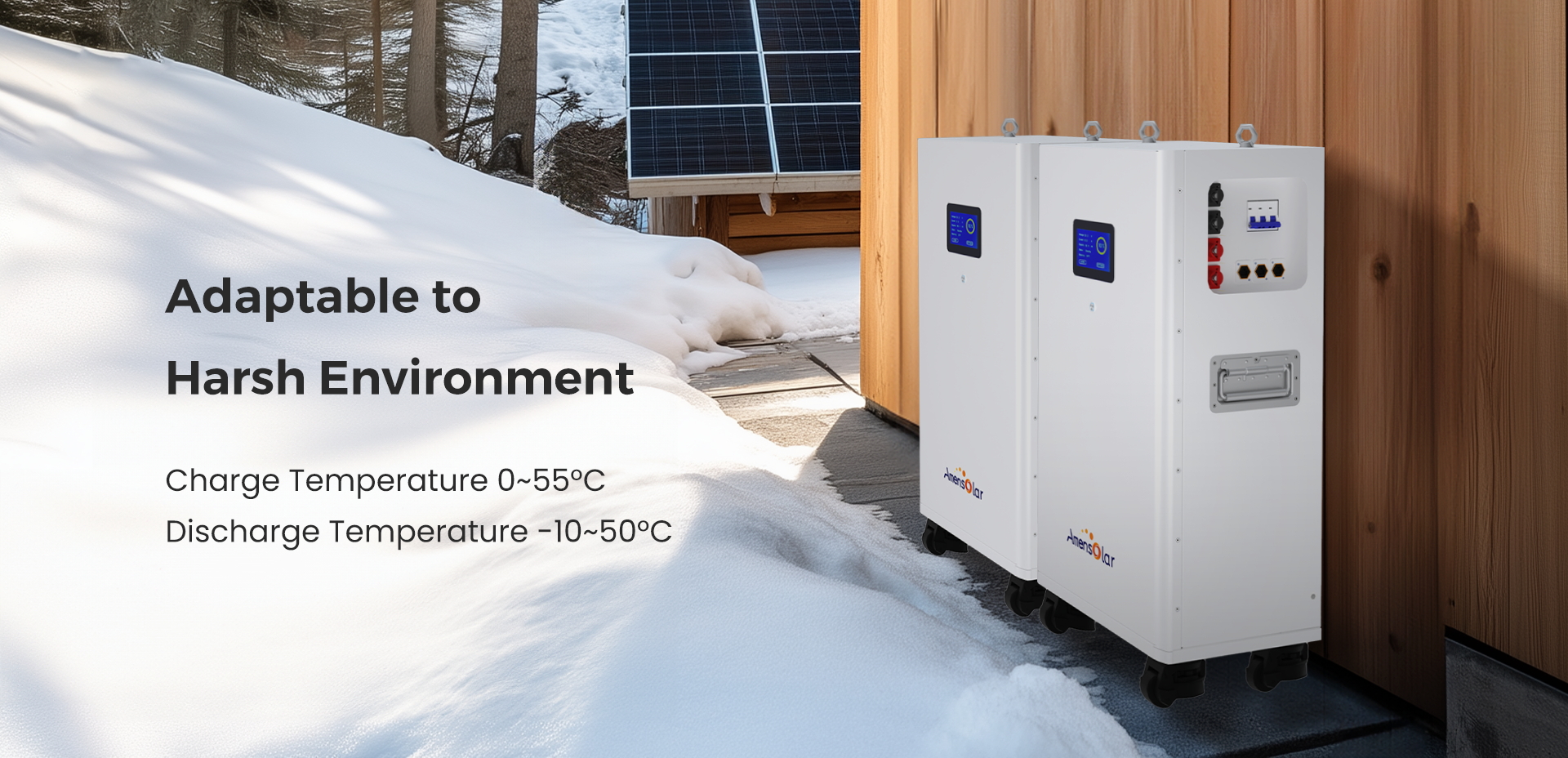

| Charge Temperature | 0 ℃ ~ + 55 ℃ | |||
| Tshem Tawm Kub | -10 ℃ ~ + 55 ℃ | |||
| Roj teeb sib npaug | Active 3A thiab Passive | |||
| txheeb ze humidity | 5% - 95% | |||
| Qhov Loj (L * W * H) | Roj teeb: 444 * 500 * 253mm suav nrog Rackets: 469 * 526 * 309mm | |||
| Qhov hnyav | 85 ± 1KG | |||
| Kev sib txuas lus | TSI, RS485 | |||
| Enclosure Protection Rating | IP52 | |||
| Hom cua txias | Ntuj Txias | |||
| Lub neej voj voog | ≥6000 | |||
| Pom zoo DOD | 90% | |||
| Tsim Lub Neej | 20+ Xyoo (25 ℃ @ 77 ℉) | |||
| Kev Nyab Xeeb Txuj | CE/UN38 .3 | |||
| Max. Pieces ntawm Parallel | 16 | |||
| Yam khoom | Kev piav qhia |
| ❶ | Breaker |
| ❷ | Kev sib txuas hauv av |
| ❸ | Load Positive |
| ❹ | Hloov fais fab |
| ❺ | Sab nraud RS485 / CAN interface |
| ❻ | 232 interface |
| ❼ | Sab hauv RS485 interface |
| ❽ | qhuav tiv tauj |
| ❾ | Load Negative |
| ❿ | Saib xyuas |
