Wall-Mounted 200ah Large-Capacity Lithium Battery
Product Description
E-BOX is a top-notch solar battery designed for versatility and convenience. With its wall-mountable feature and impressive auto DIP addressing function, it’s the perfect solution for diverse energy storage needs. ensuring your customers’ satisfaction and boosting your business growth.
Leading Features
-
01
Easy to be installed
Easy maintenance, flexibility and versatility.
-
02
LFP Prismatic Cell
Current interrupt Device (CID) helps pressure relief and ensures safe and detect controllable LifePo4 Battery.
-
03
51.2V low-voltage
Support 8 sets parallel connection.
-
04
BMS
Real-time control and accurate monitor in single cell voltag, current and temperature, ensure battery safety.
Certificates
Our Advantages
Save Installation Space: POWER BOX wall-mounted lithium battery can install the battery on the wall to make full use of vertical space. This is useful for environments with limited space. Easy Maintenance: E-BOX wall-mounted lithium battery is installed higher than the ground, making it easier to maintain and clean. Users can more easily check the status of the battery, replace the battery, or perform other maintenance operations without having to bend or squat.
Case Presentation
Package
Careful packaging:
We focus on packaging quality, using tough cartons and foam to protect products in transit, with clear usage instructions.
Secure shipping:
We partner with trusted logistics providers, ensuring products are well-protected.
|
Model |
E-BOX |
| Module Type | LFP 10.24kWh / LV |
|
Nominal Voltage
|
51.2V |
|
Operating Voltage Range
|
44.8~58.4V
|
|
Nominal Capacity
|
200Ah |
|
Nominal Energy (at25°C)
|
10.24kWh |
|
DOD
|
90%
|
|
Charge/Discharge Current
|
100A
|
|
Max Charge/Discharge Current
|
200A
|
|
Charge Temperature
|
200A |
| Charge Temperature | 0~55℃ |
|
Discharge Temperature
|
-10~50℃
|
|
Relative Humidity
|
5% – 95%
|
| Communication Interface |
CAN / RS485
|
|
Enclosure Protection Rating
|
IP 52
|
|
Cooling Type
|
Natural cooling
|
|
Cycle Life
|
≥6000
|
|
Warranty
|
10 years
|
|
Life Span
|
20+ Years (25°C)
|
|

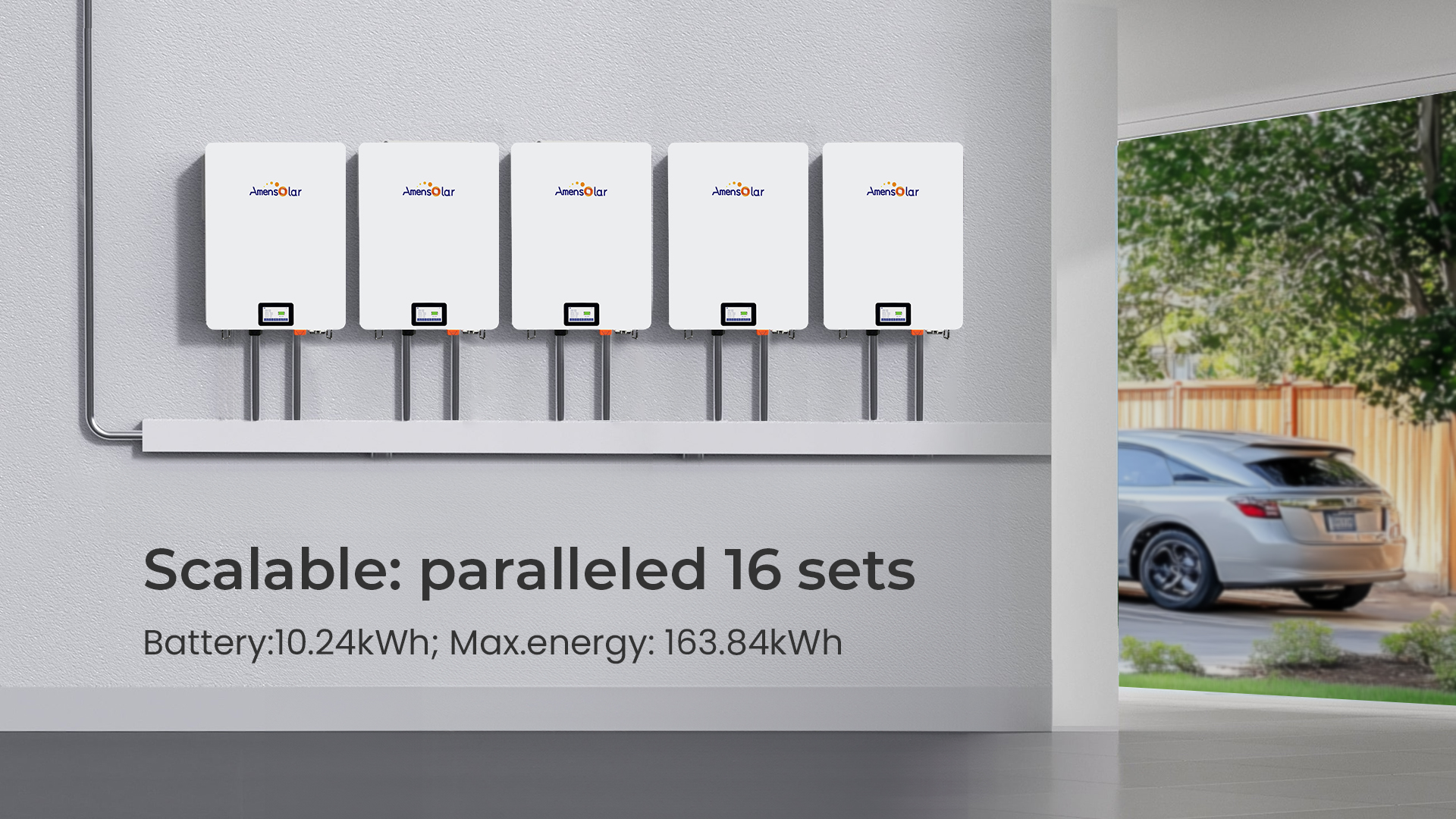

Max. Pieces of Parallel
|
16
|
|

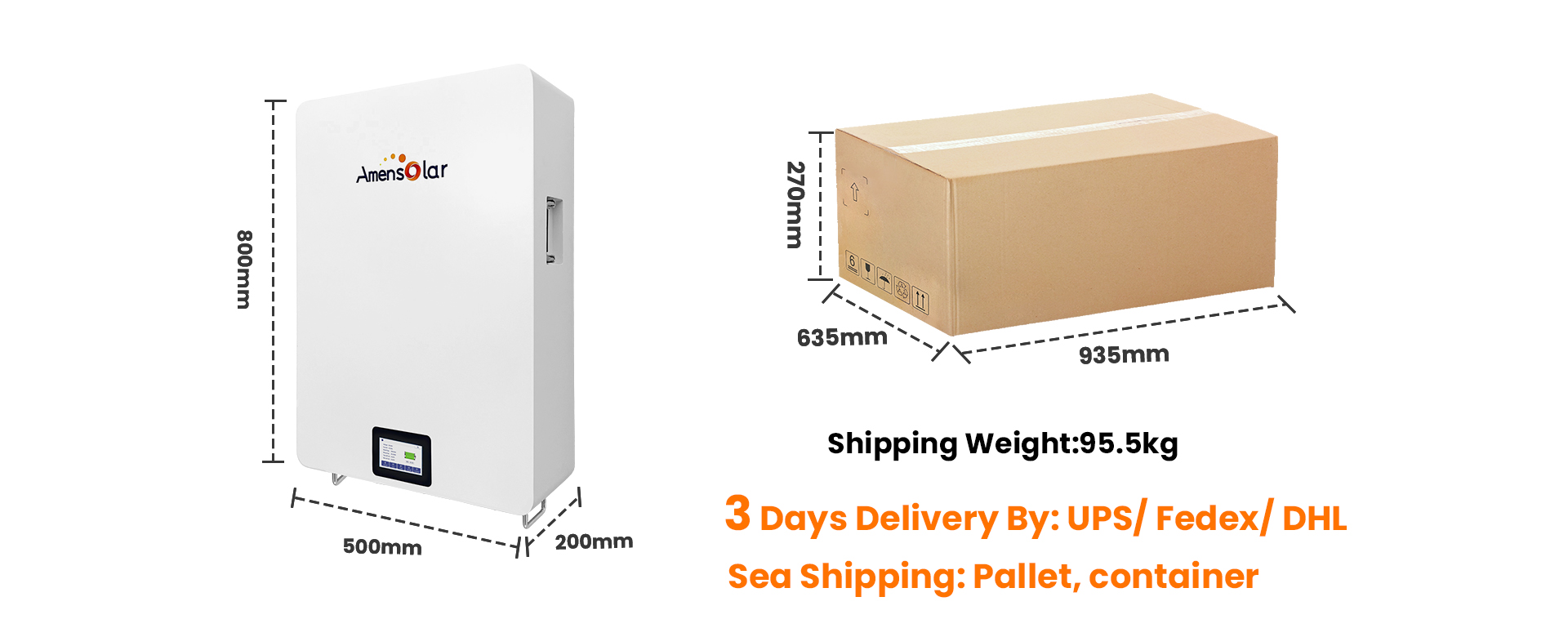

Dimension (L*W*H)
|
200*500*800mm
|
|
Weight
|
85±1kg
|
|
Certificates
|
UL1973/IEC61000/CE/UN38.3/MSDS |
| Object | Description |
| ❶ | Breaker |
| ❷ | Ground connection |
| ❸ | Load Positive |
| ❹ | Power switch |
| ❺ | External RS485/CAN interface |
| ❻ | 232 interface |
| ❼ | Internal RS485 interface |
| ❽ | dry contact |
| ❾ | Load Negative |
| ❿ | Monitor |
